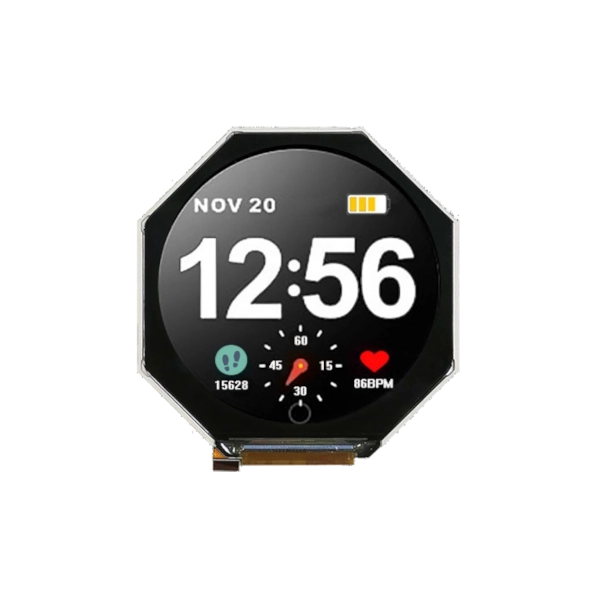

    • TM033XDHG01 3.3" circular TFT LCD

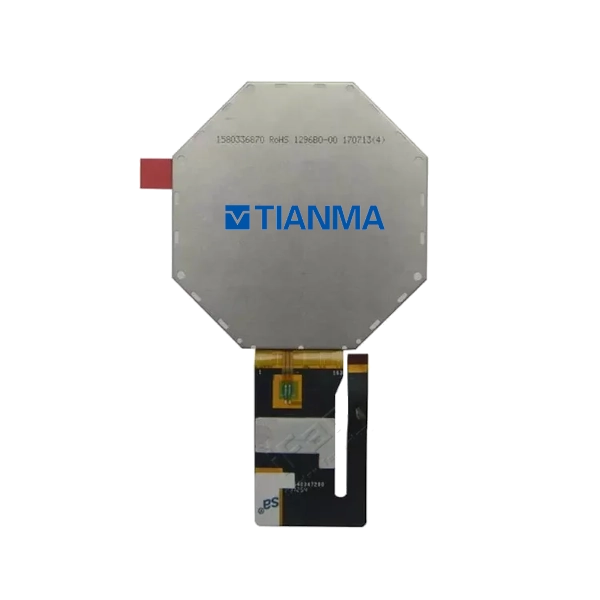

    • TM033XDHG01 circular LCD back
    1 2

    Menco Technology

    Circular TFT LCD 3.3 Inch 320x320

    $0.00 USD
    $0.00 USD
    Sale Sold out

    Contact us, we have stock on-hand.
    View full details

    Description

    TM033XDHG01-00 is a circular TFT LCD with 60mm diameter, MIPI-DSI interface, 320x320 resolution, 16.7M colors.
    It is very suitable for compact meter, IoT and smart home applications.

    Datasheet: TM033XDHG01-00

    Tianma 3.3″ TM033XDHG01-00 Optical Characteristics

    Feature Specification
    Luminance 600 cd/m²
    Contrast ratio 800:1
    Viewing angles (T/B/L/R) 70°/80°/80°/80°
    Response time 20 ms


    Tianma 3.3″ TM033XDHG01-00 Maximum Ratings

    Item Symbol Min Max
    Power Supply Voltage VDD -0.3V 4.0V
    Back Light Forward Current ILED 25mA
    Storage Temperature Tst -30°C 80°C
    Operating Temperature Top -20°C 70°C

    Tianma 3.3″ TM033XDHG01-00 Electrical Characteristics

    Item Symbol Typ.
    Supply Voltage VDD 2.8V
    IO Supply Voltage VDDI 2.8V
