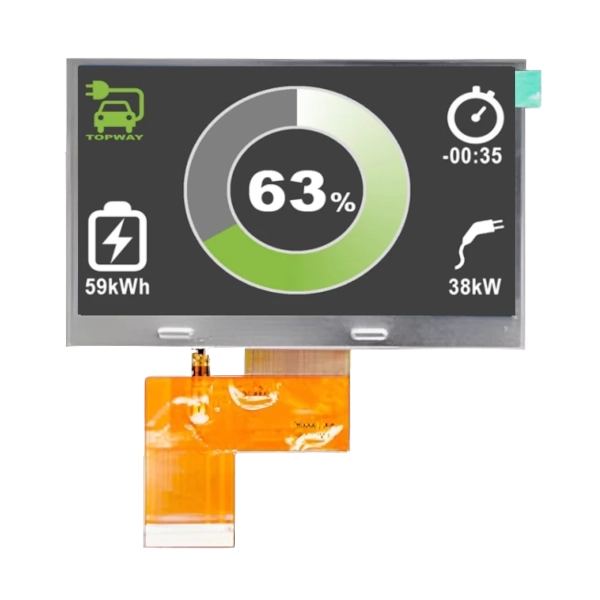

    • TM043NDH02 front picture

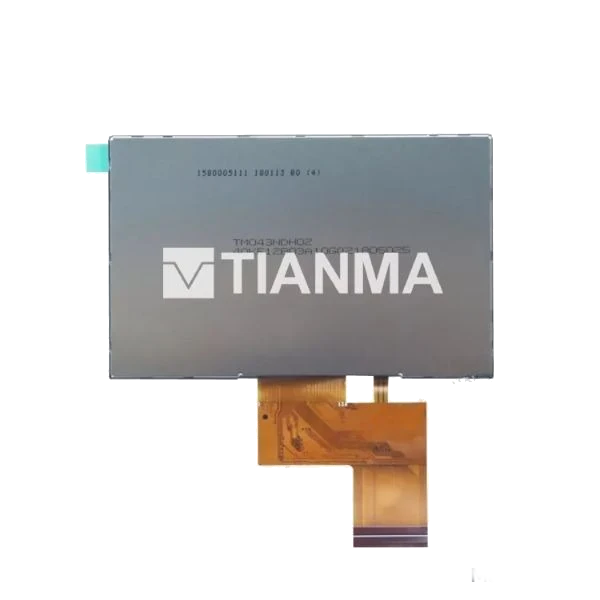

    • tm043ndh02 back picture
    1 2

    Menco Technology

    4.3 inch TFT LCD TM043NDH02

    $1.00 USD
    $1.00 USD
    Sale Sold out

    Contact us, we have stock on-hand.
    View full details

    TM043NDH02 is a 4.3 inch TFT display from Tianma, resolution 480x272, 16.7M colors, RGB interface.

    • 400 nits brightness and 900:1 contrast ratio make it suitable for most in-door environments
    • Anti-Glare surface further improves user's viewing experience
    • 6 o'clock viewing direction, perfect for portable hand-help device

    Datasheet: TM043NDH02

    Tianma 4.3 inch TFT Optical Characteristics

    Feature Specification
    Luminance 400 cd/m²
    Contrast ratio 900:1
    Viewing angles 80°/60°/80°/80°
    Response time 20 ms

    Tianma 4.3 inch TFT LCD Electrical Characteristics

    Feature Specification
    Interface RGB 24bits
    Color Depth 16.7 Million

    Tianma 4.3 inch LCD Maximum Ratings

    Item Symbol Min Max
    Power Voltage VCC -0.3V 4.6V
    Input Voltage VIN -0.3V 4.6V
    Operating Temperature Top -20°C 70°C
    Storage Temperature Tst -30°C 80°C
