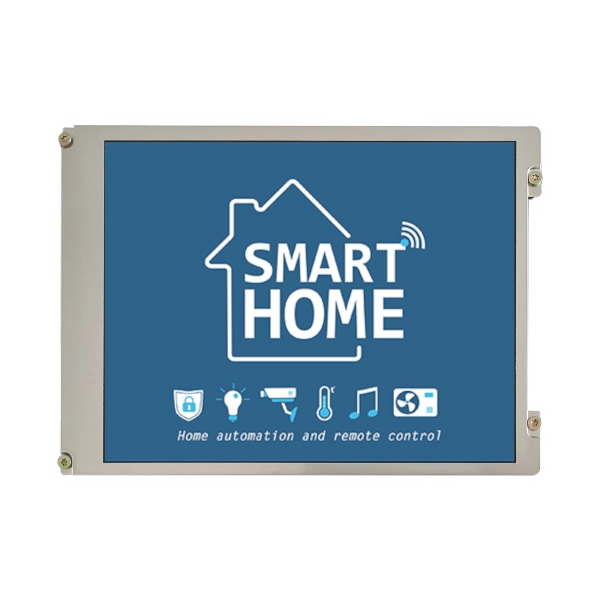

    • TM121TDSG02 front picture

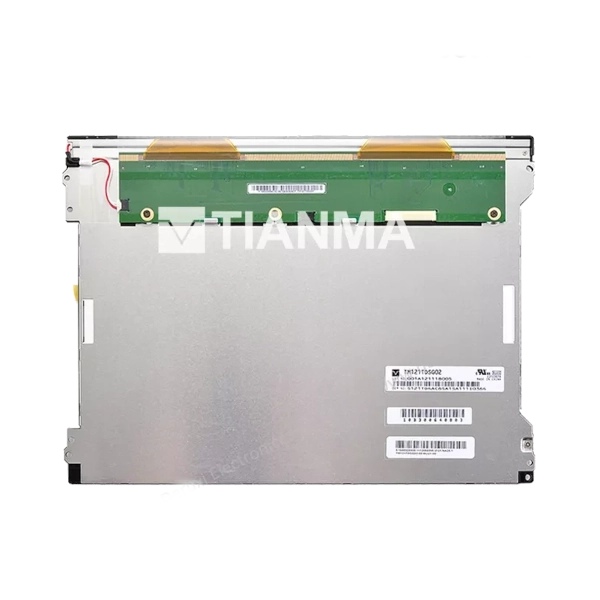

    • TM121TDSG02 back picture
    1 2

    Menco Technology

    12.1 inch TFT Display Tianma TM121TDSG02

    $0.00 USD
    $0.00 USD
    Sale Sold out

    Contact us, we have stock on-hand.
    View full details

    Description

    Tianma industrial display screen TM121TDSG02 12.1 inch screen, 1024×768, LVDS interface, 12 o’clock viewing direction, IPS technology wide viewing angles 80°/80°/80°/80°

    This module is especially suitable for industrial applications such as HMI, where durability and long operational lifetimes (50,000 hours) are essential. Touchscreen option is available.

    Datasheet: TM121TDSG02

    Tianma 12.1″ TM121TDSG02 Optical Characteristics

    Feature Specification
    Luminance 450 cd/m²
    Contrast ratio 700:1
    Viewing angles 80°/80°/80°/80°
    Response time 8 ms

    Tianma 12.1″ TM121TDSG02 Electrical Characteristics

    Feature Specification
    Interface LVDS
    Color Depth 16.7 Million

    Tianma 12.1″ TM121TDSG02 Maximum Ratings

    Item Symbol Min Max
    Power Voltage VCC -0.3 V 3.96 V
    BL Power VCC_LED -0.3 V 15 V
    Operating Temperature Top -20°C 70°C
    Storage Temperature Tst -30°C 80°C
