    Menco Technology

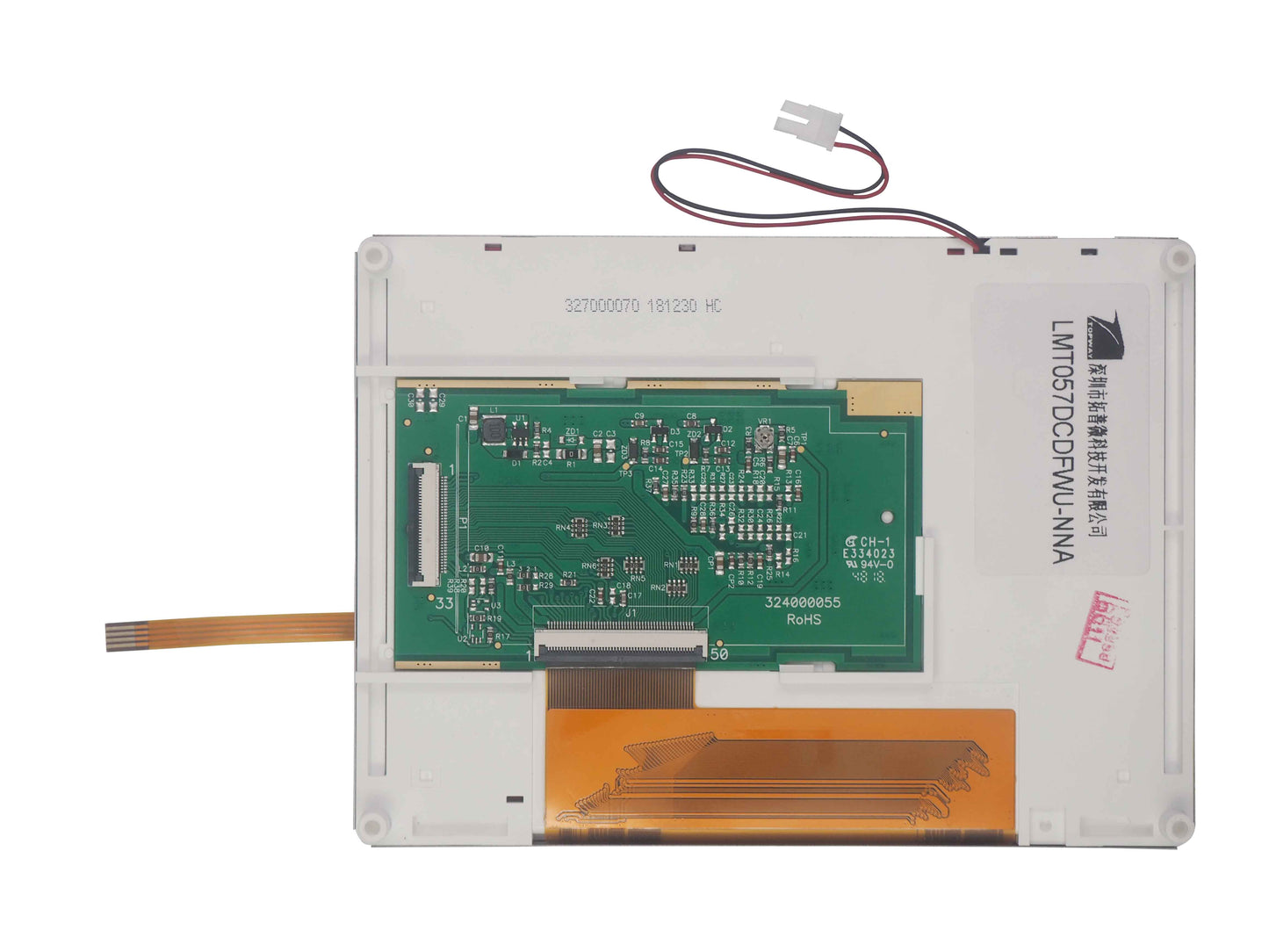

    TFT Display 5.7-inch with Resistive Touch

    $0.00 USD
    $0.00 USD
    Sale Sold out

    Contact us, we have stock on-hand.
    View full details

    Description

    This 5.7" TFT display from Topway with 640x480 resolution, 18-bit parallel interface, 12 o'clock viewing direction. 4-wires resistive touch

    Datasheet: LMT057DVDFWU-NNA

    Topway 5.7″ LMT057DCDFWU-NNA Optical Characteristics

    Feature Specification
    Luminance 400 cd/m²
    Contrast ratio 450:1
    Viewing angles 65°/65°/65°/50°
    Response time 25 ms



    5.7-inch Absolute Maximum Ratings

    Item Symbol Min Max
    Power Voltage VCC -0.3 V 5.0 V
    BL Current Ib - 200mA
    Operating Temperature Top -10°C 60°C
    Storage Temperature Tst -20°C 70°C
