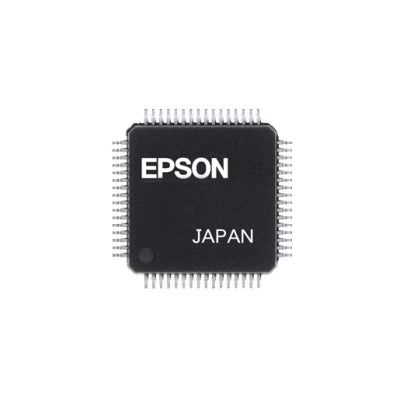

Epson S1D13L01F00A100 LCD Controller

Authentic Epson S1D13L01F00A100 Graphics LCD Controller

The Epson S1D13L01F00A100 is a highly versatile, low-power graphics LCD controller engineered for embedded display markets. With a built-in 384KByte SRAM display buffer, this IC eliminates the need for external memory, significantly reducing total system cost, power consumption, and PCB footprint.

Embedded 384 KB display buffer
Direct and indirect CPU interfaces
8/16-bit data bus width
SPI CPU interface
Support for RGB interface TFT panels
Programmable resolutions up to 800x480@8bpp
Programmable color depth up to 24 bpp
Supports Main and PIP windows
90°, 180°, 270° rotation
General purpose input/output pins
LUT 256x24bitx 3pcs for both main and PIP layer
Alpha blending, transparency, flashing
Software initiated power save mode
Clocks can be selected from two embedded
PLLs or digital clock inputs

Datasheet: S1D13L01F00A100
Package: QFP15-128
