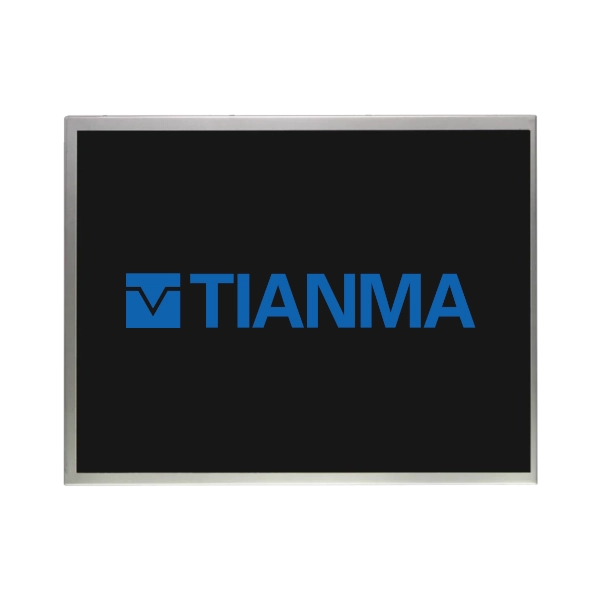

    • P1210XGF1MB00 front picture
    • P1210XGF1MB00 back picture
    1 2

    Menco Technology

    Tianma P1210XGF1MB00 12.1 inch IPS TFT LCD

    $0.00 USD
    $0.00 USD
    Sale Sold out

    Contact us for larger volume order.
    View full details

    Description

    Tianma IPS TFT LCD, 1024x768 supports VESA/JEIDA LVDS interface, 16.7 millions colors; contrast ratio 1000, 500cd/m² luminance, suitable for most ambient lighting situations.  Exceptional 178° wide viewing angle ensures perfect display from all perspectives.

    Extra wide working temperature -30℃ ~ 80℃ ensuring the display module can work in most extreme temperature environment.

    Datasheet: P1210XGF1MB00

    Tianma 12.1″ P1210XGF1MB00 Optical Characteristics

    Feature Specification
    Luminance 500 cd/m²
    Contrast ratio 1000:1
    Viewing angles 88°/88°/88°/88°
    Response time 25 ms

    Tianma 12.1″ P1210XGF1MB00 Electrical Characteristics

    Feature Specification
    Interface LVDS 6/8bits selectable
    Color Depth 16.7 Million

    Tianma 12.1″ P1210XGF1MB00 Maximum Ratings

    Item Symbol Min Max
    Power Voltage VCC -0.5V 5.0V
    Storage Temperature Tst -40°C 90°C
    Operating Temperature Top -30°C 80°C
