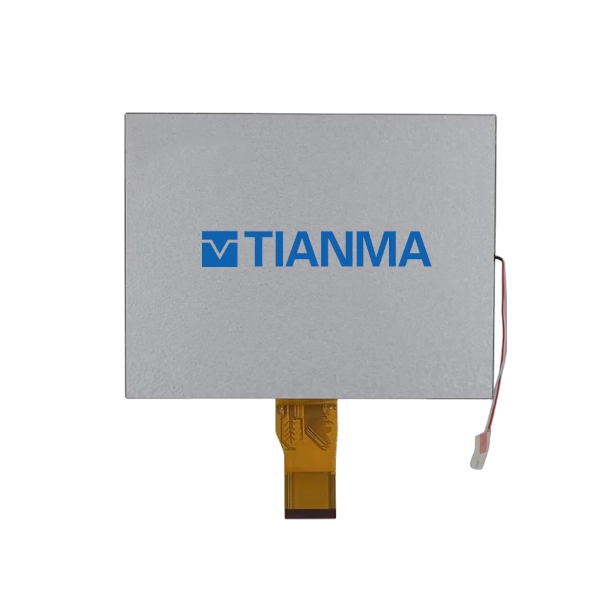

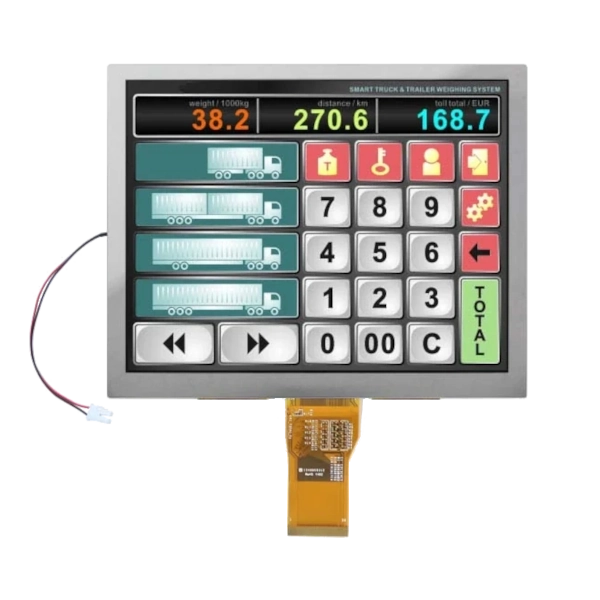

Tianma TM080SDH01 8 Inch Screen 800×600 RGB Interface

Name: Tianma TM080SDH01 8 Inch Screen 800×600 RGB Interface
Brand: Menco Technology
SKU: C090032d
Availability: OutOfStock

$0.00 USD

Sale Sold out

Quantity

Contact us, we have stock on-hand.

View full details

Description

Tianma TM080SDH01 is an 8 inch 800x600 screen, anti-glare, interface RGB 24bits true color with TCON.

The module can operate within a wide temperature range of -20°C to +70°C. The TM080SDH01 is a high-quality TFT LCD display module that offers excellent display performance and durability, making it an ideal choice for a wide range of applications, including industrial control systems, electronic scale.

Datasheet: TM080SDH01

Tianma TM080SDH01 Optical Characteristics

Feature	Specification
Luminance	250 cd/m²
Contrast ratio	800:1
Viewing angles	60°/70°/70°/70°
Response time	20 ms

Tianma TM080SDH01 Electrical Characteristics

Feature	Specification
Interface	RGB 24bit
Color Depth	16.7 Million

Tianma TM080SDH01 Maximum Ratings

Item	Symbol	Min	Max
Power Voltage	VCC	-0.5V	3.96V
Power Voltage	AVDD	-0.5V	14.85V
Power Voltage	VGH	-0.3V	42V
Power Voltage	VGL	VGH-42V	0.3V
Operating Temperature	Top	-20°C	70°C
Storage Temperature	Tst	-30°C	80°C
