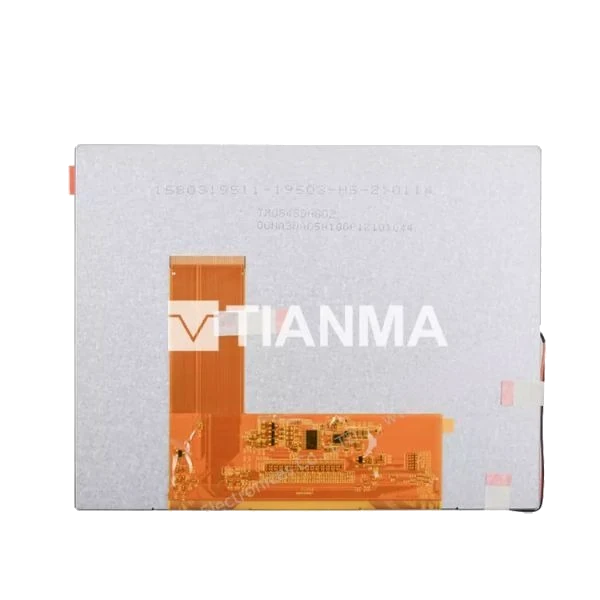

Tianma TFT LCD TM084SDHG02, resolution 800x600, -20~70°C working temperature, 24bits RGB interface, anti-glare surface treatment, designed for industrial applications.
Datasheet: TM084SDHG02
Tianma TM084SDHG02 Optical Characteristics
| Feature | Specification |
|---|---|
| Luminance | 350 cd/m² |
| Contrast ratio | 500:1 |
| Viewing angles | 60°/70°/70°/70° |
| Response time | 20 ms |
Tianma TM084SDHG02 Electrical Characteristics
| Feature | Specification |
|---|---|
| Interface | RGB 24bit |
| Color Depth | 16.7 Million |
| Power Consumption | LCD:660mW; Backlinght:1728mW |
Tianma TM084SDHG02 Maximum Ratings
| Item | Symbol | Min | Max |
|---|---|---|---|
| Power Voltage | VCC | -0.5V | 5.0V |
| Input Voltage | VIN | -0.3V | 5.0V |
| Operating Temperature | Top | -20°C | 70°C |
| Storage Temperature | Tst | -30°C | 80°C |
-
