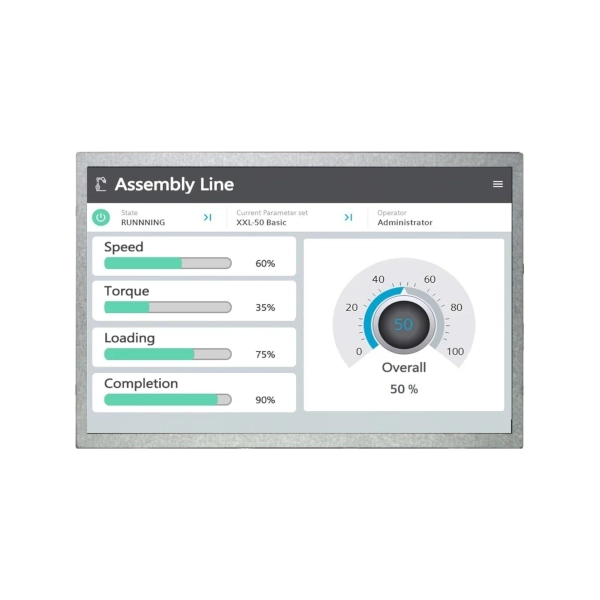

    • TM121JDGP30 front picture

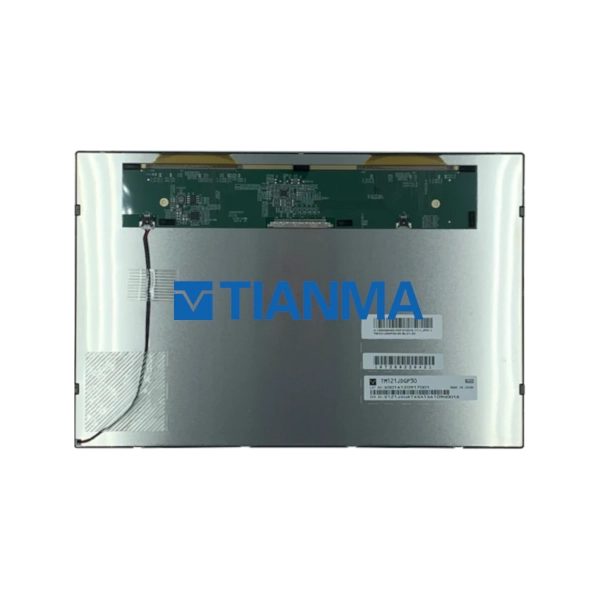

    • TM121JDGP30 back picture
    1 2

    Menco Technology

    Tianma TM121JDGP30 12.1″ IPS LCD 1280×800 LVDS

    $0.00 USD
    $0.00 USD
    Sale Sold out

    Contact us, we have stock on-hand.
    View full details

    Tianma IPS TFT LCD TM121JDGP30, HD resolution 1280x800, wide viewing angle, anti-glare surface treatment, excellent for POS, industrial control and medical applications.

    LVDS interface, MTBF 50K hours.

    Datasheet: TM121JDGP30

    Tianma TM121JDGP30 Optical Characteristics

    Feature Specification
    Luminance 450 cd/m²
    Contrast ratio 1000:1
    Viewing angles 85°/85°/85°/85°
    Response time 25 ms

    Tianma TM121JDGP30 Electrical Characteristics

    Feature Specification
    Interface LVDS, 6/8bit selectable
    Color Depth 16.7 Million

    Tianma TM121JDGP30 Maximum Ratings

    Item Symbol Min Max
    Voltage Input VDD 0.5V 4.0V
    LED Power VLED -0.5V 33V
    LED Control VLED_EN, PWM -0.5V 5.5V
    Operating Temperature Top -20°C 70°C
    Storage Temperature Tst -30°C 80°C
